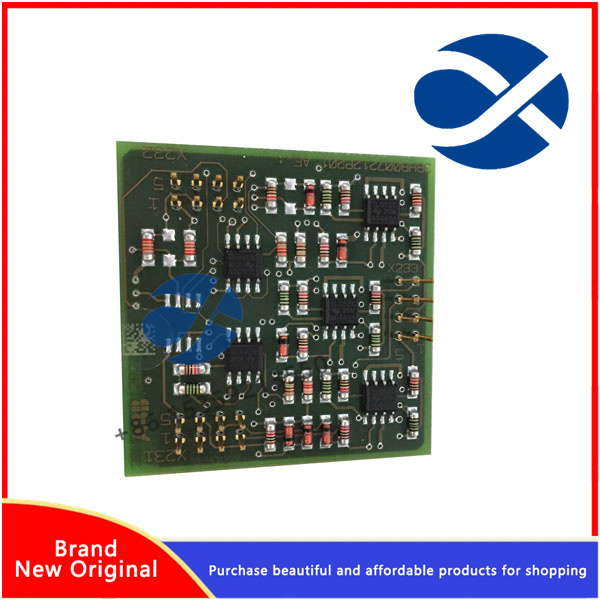

ABB 3BHB007211R0103 input/output

The series industrial grade rack type switches are designed specifically for industrial applications, such as traffic control systems, power network systems, various wind and photovoltaic systems. The CK7100 series supports gigabit and fast Ethernet backbone networks, dual redundant ring networks, and isolated two power inputs (24/48VDC or 110/220 VAC), effectively improving communication stability and saving customer network cabling costs. The CK7100 series switch is fixed with 16 100MRJ interfaces, and customers can flexibly choose one module according to their application and network conditions. It supports 8 100M RJ45 interfaces or optical interfaces (SC/ST/FC optional), fully meeting the diverse needs of industrial environments.

Performance characteristics

*Supports IEEE802.3/802.3u/802.3ab protocol, with store forward switching method

*Supports 16 10/100BASE-T (X) RJ45 electrical ports, with optional modules supporting 8 10/100BASE-T (X) RJ45 electrical ports or 100BASE-FX optical ports (SC/ST/FC/SFP optional)

*The RJ45 electrical interface supports Auto Negotiation technology, automatically negotiates working rates (10M/100M) and duplex modes (half duplex/full duplex), and supports automatic port flipping

*Supports 4 1000BASE SFP interfaces and can adapt to 1000M SFP optical modules (supporting single mode and multimode) and 1000M SFP electrical module

*Support broadcast storm suppression function

*Supports three management methods: Web, CLI, and SNMP. CLI supports Telnet and CONSOLE login

ABB 3BHB007211R0103 input/output

*Support common port feature settings, such as port enable, adaptive or forced, flow control, etc

*Supports port mirroring for online debugging and monitoring of network data status

*Support port bandwidth limitation function, optimize bandwidth utilization

*Support port aggregation function, used to expand network bandwidth and improve network transmission efficiency

*Support port priority QoS settings to improve network service quality

*Supports port MAC address learning and data statistics functions

*Supports 802.1Q VLAN settings, effectively controlling broadcast domains

*Supports unicast/multicast MAC address management

*Supports static IGMP multicast filtering for filtering multicast traffic in industrial Ethernet protocols

*Support SNMP V1/V2C/V3 to ensure stability in network management at different levels

*Support RSTP to avoid packet proliferation and infinite loops in loop networks

*Supports plug and play redundant self-healing Ethernet ring network technology (fault recovery time under full load<20ms), and supports three ring network modes: single ring, tangential, and intersecting

*Support global network system management

*Support relay alarm output

*Adopting high-strength IP30 shell and industrial grade EMC design

*Supports redundant dual voltage 110/220V AC power input or 24/48V DC power input, supports anti reverse connection, power consumption<15W

*Working temperature range of -40~85 ℃
