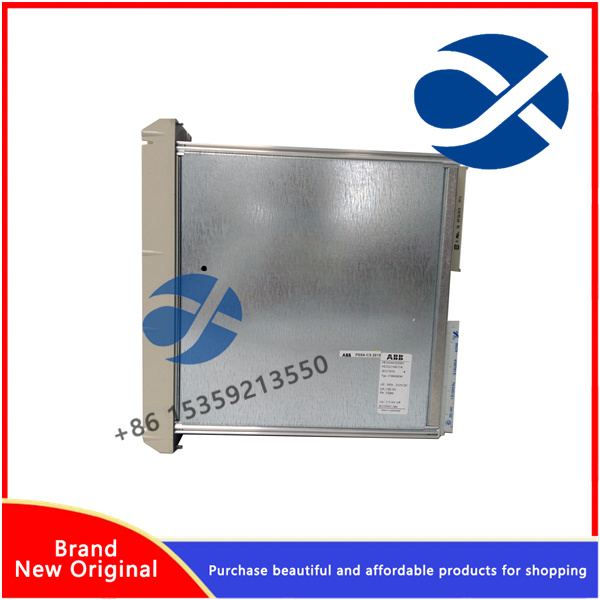

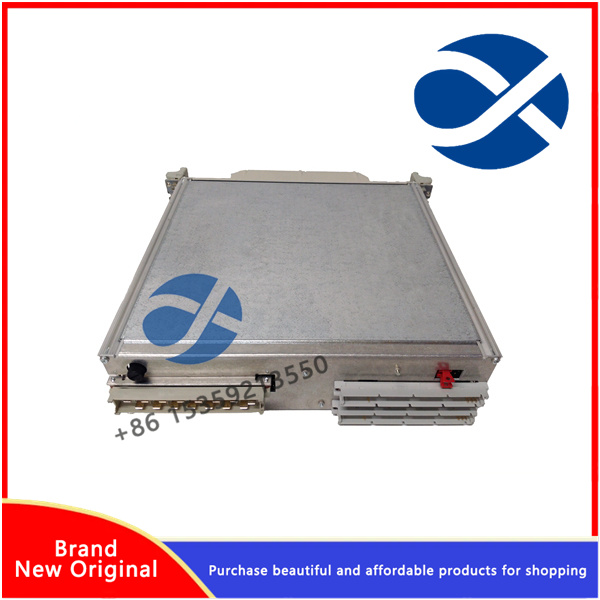

ABB HESG216877K communication module

The 0-port gigabit hybrid unmanaged industrial Ethernet switch adopts a high-strength IP30 protection level shell and an industrial level 4 EMC design, supporting a wide range of dual redundant power inputs (12-48V DC) to increase the reliability of the communication network. Supports 4-8 10/100BaseT (X) RJ45 ports, 0-2 1000M SFP standard ports, and 0-4 100BaseFX optical ports, allowing for optoelectronic mixing and flexible business port combinations. Based on industrial installation requirements, provide two installation modes: 35mm guide rail or wall mounted.

Performance characteristics

*Supports 802.1Q/802.1p/802.3 standard, with storage and forwarding switching method

*Supports 0-8 10/100BaseT (X) RJ45 Ethernet interfaces, supports Auto Negotiation technology, automatically negotiates operating rates (10M/100M) and duplex modes (half duplex/full duplex), and supports automatic port flipping

*Supports 0-4 100BaseFX 100Mbps full duplex optical ports, default SC interface, optional FC and ST, capable of transmitting up to 120 kilometers

*Supports 0-2 1000MSFP standard network ports, with flexible selection of corresponding modules supporting 1000M fiber optic interfaces or RJ45 cable interfaces

*Support broadcast storm suppression function

*Adopting high-strength IP30 shell and industrial grade IV EMC design

*Supports redundant wide voltage 12-48VDC power input, with full load power consumption less than 10W

Detailed specifications

ABB HESG216877K communication module

Detailed specifications

Interface

*RJ45 interface: 10/100BaseT (X) rate self detection, full/half duplex mode, supporting automatic port flipping

*Optical port: 100BaseFX 100Mbps full duplex, default SC interface, optional FC and ST, capable of transmitting up to 120 kilometers

*SFP interface: 1000MSFP standard network interface, optional 1000M fiber optic interface or RJ45 cable interface

*Power input: Two power inputs, two removable 4-pin wiring terminals, common ground

Power supply

*Redundant wide voltage 12-48V DC power input, typical working voltage 12V/24V/48V

*Full load power consumption less than 10W

*Built in overcurrent protection

Mechanical characteristics * width * height): 152mm * 121mm * 53mm

*Net weight: 900 grams

*Packaging: IP30 level protection, metal shell

*Installation: Wall mounted or rail mounted

Contact information:+86 15359213550
